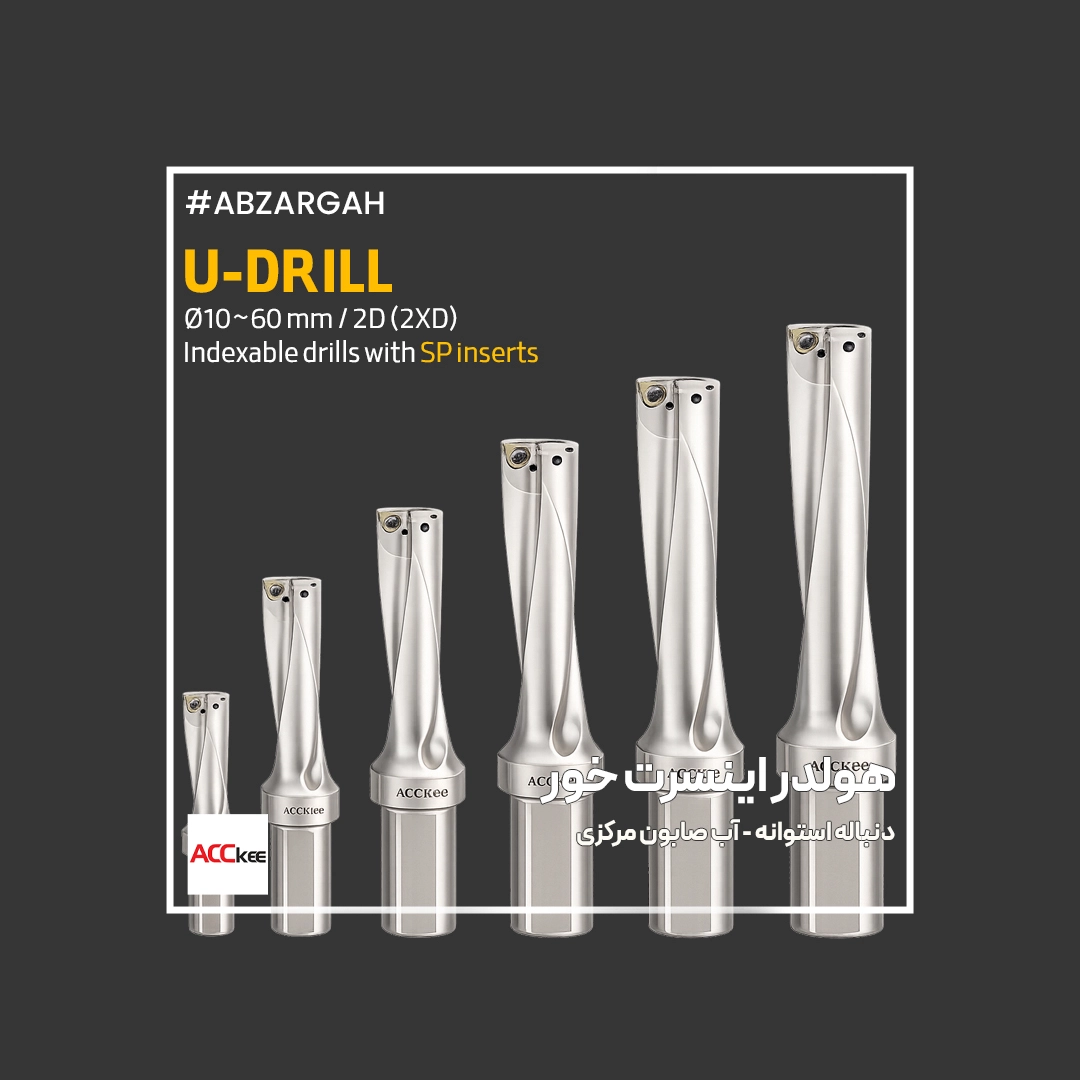

هولدر مته U-Drill اینسرت خور 2D استوانه‌ای ACCKee | SP

به‌روزرسانی شده در: جمعه ۱۲ تیر ۱۴۰۵ - ساعت ۱۶:۰۶

تاریخچه قیمت بعد از چند تغییر قیمت نمایش داده می‌شود.

برند: ACCKee
سری: SP
نوع: هولدر U-Drill اینسرت خور
مدل: TDR Series
نسبت طول: 2×D
قطر سوراخکاری: Ø10~60 mm
طول کارگیر: 22~128 mm
قطر دنباله: Ø20 / Ø25 / Ø32 mm
سیستم خنک‌کاری: آب‌صابون مرکزی (Internal Coolant)
نوع دنباله: استوانه‌ای (Cylindrical Shank)
تلرانس سوراخکاری: -0.25 / +0.25 mm
اینسرت قابل استفاده: SP Series Inserts

لطفا قبل از پرداخت موجودی کالا را از طریق تماس تلفنی چک بفرمایید

شناسه محصول: نامعلوم دسته: یودریل (U-DRILL)

هولدر U-Drill 2D برند ACCKee با سیستم اینسرت SP برای سوراخکاری دقیق، سریع و اقتصادی در عمق 2 برابر قطر مته (2×D) طراحی شده است. این هولدر با استفاده از سیستم آب‌صابون مرکزی (Internal Coolant)، دنباله استوانه‌ای مقاوم و اینسرت‌های قابل تعویض SP، عملکردی پایدار با خروج مناسب براده و کیفیت سطح بالا در عملیات سوراخکاری فراهم می‌کند.

سری SP 2D به دلیل طراحی کاربردی و تعویض سریع اینسرت، گزینه‌ای مناسب برای استفاده در دستگاه‌های CNC، تراش CNC و مراکز ماشینکاری بوده و برای تولید قطعات صنعتی، قالب‌سازی و خطوط تولید انتخابی حرفه‌ای محسوب می‌شود. این محصول توسط ابزارگاه به عنوان نماینده فروش ACCKee در سایزهای مختلف عرضه می‌شود.

ΦDc	ΦDs	Specification / Item	L	ℓ1	ℓ2	ℓ3	Applicable Insert	Weight (kg)	CODE
10	20	2D10–22SP04	86.5	22	35.5	44	SP..04T102	0.2
10.5	20	2D10.5-23SP04	86.5	22	35.5	44	SP..04T102	0.2
11	20	2D11-24SP04	87.5	24	36.5	44	SP..04T102	0.2
11.5	20	2D11.5-24SP04	88	24	38	44	SP..04T102	0.2
12	20	2D12-26SP04	90	25	40	44	SP..04T102	0.2
12.5	20	2D12.5-27SP04	93	27	43	44	SP..04T102	0.2
13	20	2D13-29SP05	88	29	44	44/56	SP..050204	0.2	C20-2D13-29SP05
13.5	20	2D13.5-30SP05	89	30	45	44/56	SP..050204	0.2	C20-2D13.5-30SP05
14	20	2D14-31SP05	90	31	46	44/56	SP..050204	0.2	C20-2D14-31SP05
14.5	20	2D14.5-32SP05	91	32	47	44/56	SP..050204	0.2	C20-2D14.5-32SP05
15	20	2D15-33SP05	92	33	48	44/56	SP..050204	0.2	C20-2D15-33SP05
15	25	2D15-33SP05	92	33	48	44/56	SP..050204	0.2	C25-2D15.5-34SP05
15.5	25	2D15.5-34SP05	93	34	49	44/56	SP..050204	0.2	C25-2D15/5-33SP05
16	25	2D16-35SP06	94	35	50	56	SP..060204	0.2	C25-2D16-35SP06
16.5	25	2D16.5-36SP06	95	36	51	56	SP..060204	0.2	C25-2D16.5-36SP06
17	25	2D17-37SP06	96	37	52	56	SP..060204	0.2	C25-2D17-37SP06
17.5	25	2D17.5-38SP06	109	38	53	56	SP..060204	0.2	C25-2D17.5-38SP06
18	25	2D18-39SP06	110	39	54	56	SP..060204	0.3	C25-2D18-39SP06
18.5	25	2D18.5-40SP06	111	40	55	56	SP..060204	0.3	C25-2D18.5-40SP06
19	25	2D19-41SP06	112	41	56	56	SP..060204	0.3	C25-2D19-41SP06
19.5	25	2D19.5-42SP06	113	42	57	56	SP..060204	0.3	C25-2D19.5-42SP06
20	25	2D20-43SP06	114	43	58	56	SP..060204	0.3	C25-2D20-43SP06
20.5	25	2D20.5-44SP06	115	44	59	56	SP..060204	0.3	C25-2D20.5-44SP06
21	25	2D21-45SP06	116	45	60	56	SP..060204	0.3	C25-2D21-45SP06
21.5	25	2D21.5-46SP06	117	46	61	56	SP..060204	0.3	C25-2D21.5-46SP06
22	25	2D22-47SP07	118	47	62	56	SP..07T308	0.4	C25-2D22-47SP07
22.5	25	2D22.5-48SP07	119	48	63	56	SP..07T308	0.4	C25-2D22.5-48SP07
23	25	2D23-49SP07	123	49	67	56	SP..07T308	0.4	C25-2D23-49SP07
23.5	25	2D23.5-50SP07	124	50	68	56	SP..07T308	0.4	C25-2D23.5-50SP07
24	25	2D24-51SP07	125	51	69	56	SP..07T308	0.4	C25-2D24-51SP07
24.5	25	2D24.5-52SP07	126	52	70	56	SP..07T308	0.4	C25-2D24.5-52SP07
25	25	2D25-53SP07	127	53	71	56	SP..07T308	0.4	C25-2D25-53SP07
25.5	32	2D25.5-54SP07	134	54	74	60	SP..07T308	0.6	C32-2D25.5-54SP07
26	32	2D26-55SP07	135	55	75	60	SP..07T308	0.6	C32-2D26-55SP07
26.5	32	2D26.5-56SP07	136	56	76	60	SP..07T308	0.6	C32-2D26.5-56SP07
27	32	2D27-57SP07	137	57	77	60	SP..07T308	0.6	C32-2D27-57SP07
27.5	32	2D27.5-58SP07	138	58	78	60	SP..07T308	0.6	C32-2D27.5-58SP07
28	32	2D28-59SP07/09	139	59	79	60	SP..07T308 / SP..090408	0.6	C32-2D28-59SP07
28.5	32	2D28.5-60SP07/09	140	60	80	60	SP..07T308 / SP..090408	0.6	C32-2D28.5-60SP07
29	32	2D29-62SP09	143	62	83	60	SP..090408	0.7	C32-2D29-62SP09
29.5	32	2D29.5-63SP09	144	63	84	60	SP..090408	0.7	C32-2D29.5-63SP09
30	32	2D30-64SP09	148	64	88	60	SP..090408	0.7	C32-2D30-64SP09
30.5	32	2D30.5-65SP09	149	65	89	60	SP..090408	0.7	C32-2D30.5-65SP09
31	32	2D31-66SP09	150	66	90	60	SP..090408	0.7	C32-2D31-66SP09
31.5	32	2D31.5-67SP09	151	67	91	60	SP..090408	0.7	C32-2D31.5-67SP09
32	32	2D32-68SP09	152	68	92	60	SP..090408	0.8	C32-2D32-68SP09
32.5	32	2D32.5-69SP09	153	69	93	60	SP..090408	0.8	C32-2D32.5-69SP09
33	32	2D33-70SP09	154	70	94	60	SP..090408	0.8	C32-2D33-70SP09
33.5	32	2D33.5-71SP09					SP..090408		C32-2D33.5-71SP09
34	32	2D34–72SP09/11	156	72	96	60	SP..090408 / SP..110408	0.8	C32-2D34-72SP09
34.5	32	2D34.5-73SP09/11	157	73	97	60	SP..090408 / SP..110408	0.8	C32-2D34.5-73SP09
35	32	2D35–74SP11	158	74	98	60	SP..110408	0.8	C32-2D35-74SP11
35.5	32	2D35.5-75SP11	159	75	99	60	SP..110408	0.8
36	32	2D36–76SP11	160	76	100	60	SP..110408	0.9	C32-2D36-76SP11
36.5	32	2D36.5-77SP11	161	77	101	60	SP..110408	0.9	C32-2D36.5-77SP11
37	32	2D37–79SP11	169	79	109	60	SP..110408	0.9
37.5	32	2D37.5-80SP11	170	80	110	60	SP..110408	0.9
38	32	2D38–81SP11	171	81	111	60	SP..110408	0.9	C32-2D38-81SP11
38.5	32	2D38.5-82SP11	172	82	112	60	SP..110408	0.9
39	32	2D39–83SP11	173	83	113	60	SP..110408	1
39.5	32	2D39.5-84SP11	174	84	114	60	SP..110408	1.1
40	40	2D40–85SP11	185	85	115	70	SP..140612	1.1
40.5	40	2D40.5-86SP11	186	86	116	70	SP..140612	1.1
41	40	2D41-87SP11	187	87	117	70	SP..140612	1.1
41.5	40	2D41.5-88SP11	188	88	118	70	SP..140612	1.1
42	40	2D42-89SP14	189	89	119	70	SP..140612	1.1
42.5	40	2D42.5-90SP14	190	90	120	70	SP..140612	1.3
43	40	2D43-91SP14	191	91	121	70	SP..140612	1.5
43.5	40	2D43.5-92SP14	192	92	122	70	SP..140612	1.5
44	40	2D44-93SP14	193	93	123	70	SP..140612	1.6
44.5	40	2D44.5-94SP14	194	94	124	70	SP..140612	1.6
45	40	2D45-95SP14	195	95	125	70	SP..140612	1.7
45.5	40	2D45.5-96SP14	196	96	126	70	SP..140612	1.7
46	40	2D46-97SP14	197	97	127	70	SP..140612	1.7
46.5	40	2D46.5-98SP14	198	98	128	70	SP..140612	1.8
47	40	2D47-99SP14	199	99	129	70	SP..140612	1.8
47.5	40	2D47.5-100SP14	200	100	130	70	SP..140612	1.8
48	40	2D48-101SP14	201	101	131	70	SP..140612	1.8
48.5	40	2D48.5-102SP14	202	102	132	70	SP..140612	1.8
49	40	2D49-103SP14	203	103	133	70	SP..140612	1.9
49.5	40	2D49.5-105SP14	204	104	134	70	SP..140612	1.9
50	40	2D50-105SP14	205	105	135	70	SP..140612	1.9
51	40	2D51-107SP09	207	107	137	70	SP..090408	2
52	40	2D52-109SP09	209	109	139	70	SP..090408	2
53	40	2D53-111SP09	211	111	141	70	SP..090408	2.1
54	40	2D54-113SP09	213	113	143	70	SP..090408	2.2
55	40	2D55-115SP09	215	115	145	70	SP..090408	2.3
56	40	2D56-120SP09	222	120	152	70	SP..090408	2.4
57	40	2D57-122SP09	224	122	154	70	SP..090408	2.5
58	40	2D58-124SP09	226	124	156	70	SP..090408	2.6
59	40	2D59-126SP09	228	126	158	70	SP..090408	2.7
60	40	2D60-128SP09	230	128	160	70	SP..090408	2.8

ابزارگاه مجموعه کاملی از هولدرهای U-Drill 2D سری SP را همراه با اینسرت‌های اصلی، مشاوره تخصصی انتخاب ابزار و ارسال سریع به سراسر ایران ارائه می‌کند. تیم فنی ابزارگاه آماده است با توجه به جنس قطعه، قطر سوراخکاری، شرایط برش و نوع دستگاه مناسب‌ترین مدل هولدر و اینسرت SP را برای شما انتخاب کند.
