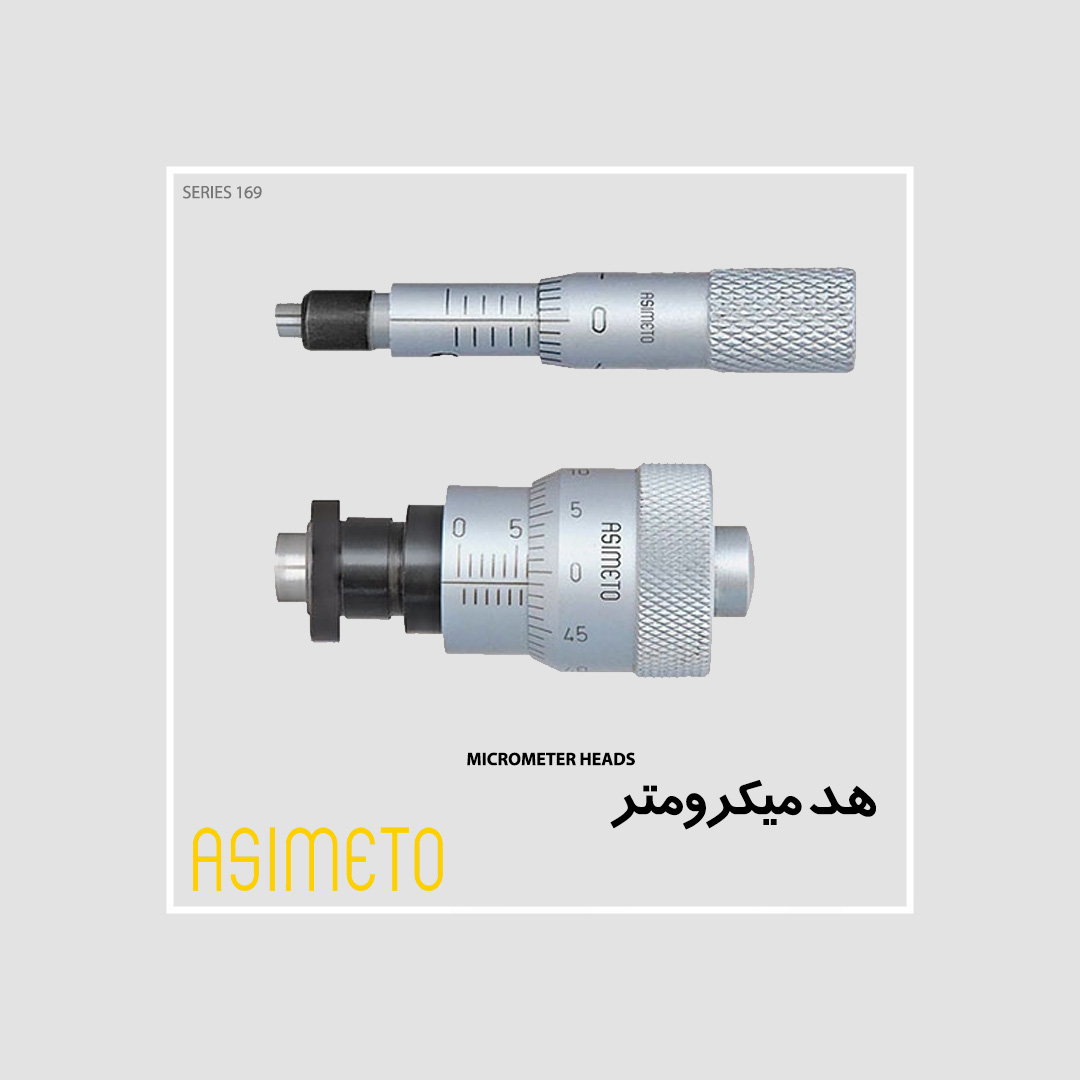

Asimeto Micrometer Heads Series 169
| metric |
|
|
|
|
|
|
|
| Range |
Accuracy |
Graduation |
Spindle |
Spindle |
Measuring Face |
Clamp Nut |
Code No. |
| Dia. |
Lock |
| 0-5mm |
0.004mm |
0.02mm |
Φ2mm |
W/O |
Flat |
W/O |
169-82-0 |
| 0-5mm |
0.004mm |
0.02mm |
Φ2mm |
W/O |
Spherical |
W/O |
169-82-2 |
| 0-6.5mm |
0.004mm |
0.01mm |
Φ3.5mm |
W/O |
Flat |
W/O |
169-65-0 |
| 0-6.5mm |
0.004mm |
0.01mm |
Φ3.5mm |
W/O |
Spherical |
W/O |
169-65-2 |
| 0-6.5mm |
0.004mm |
0.01mm |
Φ3.5mm |
W/O |
Flat |
With |
169-65-4 |
| 0-6.5mm |
0.004mm |
0.01mm |
Φ3.5mm |
W/O |
Spherical |
With |
169-65-6 |
| 0-6.5mm |
0.004mm |
0.01mm |
Φ6.5mm |
W/O |
Carbide & Flat |
W/O |
169-75-0 |
| 0-6.5mm |
0.004mm |
0.01mm |
Φ6.5mm |
W/O |
Carbide & Spherical |
W/O |
169-75-2 |
| 0-6.5mm |
0.004mm |
0.01mm |
Φ6.5mm |
W/O |
Carbide & Flat |
With |
169-75-4 |
| 0-6.5mm |
0.004mm |
0.01mm |
Φ6.5mm |
W/O |
Carbide & Spherical |
With |
169-75-6 |
| 0-6.5mm |
0.004mm |
0.005mm |
Φ6.5mm |
W/O |
Carbide & Flat |
W/O |
169-85-0 |
| 0-6.5mm |
0.004mm |
0.005mm |
Φ6.5mm |
W/O |
Carbide & Spherical |
W/O |
169-85-2 |
| inch |
|
|
|
|
|
|
|
| Range |
Accuracy |
Graduation |
Spindle |
Spindle |
Measuring Face |
Clamp Nut |
Code No. |
| Dia. |
Lock |
| 0-2″ |
± .0001″ |
.001″ |
Φ .079″ |
W/O |
Flat |
W/O |
169-82-1 |
| 0-2″ |
± .0001″ |
.001″ |
Φ .079″ |
W/O |
Spherical |
W/O |
169-82-3 |
| 0-.25″ |
± .0001″ |
.001″ |
Φ .138″ |
W/O |
Flat |
W/O |
169-65-1 |
| 0-.25″ |
± .0001″ |
.001″ |
Φ .138″ |
W/O |
Spherical |
W/O |
169-65-3 |
| 0-.25″ |
± .0001″ |
.001″ |
Φ .138″ |
W/O |
Flat |
With |
169-65-5 |
| 0-.25″ |
± .0001″ |
.001″ |
Φ .138″ |
W/O |
Spherical |
With |
169-65-7 |
| 0-.25″ |
± .0001″ |
.001″ |
Φ .256″ |
W/O |
Carbide & Flat |
W/O |
169-75-1 |
| 0-.25″ |
± .0001″ |
.001″ |
Φ .256″ |
W/O |
Carbide & Spherical |
W/O |
169-75-3 |
| 0-.25″ |
± .0001″ |
.001″ |
Φ .256″ |
W/O |
Carbide & Flat |
With |
169-75-5 |
| 0-.25″ |
± .0001″ |
.001″ |
Φ .256″ |
W/O |
Carbide & Spherical |
With |
169-75-7 |
| 0-.25″ |
± .0001″ |
.0002″ |
Φ .256″ |
W/O |
Carbide & Flat |
W/O |
169-85-1 |
| 0-.25″ |
± .0001″ |
.0002″ |
Φ .256″ |
W/O |
Carbide & Spherical |
W/O |
169-85-3 |
